NQ Diamond Core Bits
video

NQ Diamond Core Bits

Product Description I want to emphasize that the impregnated diamond core bits are incredibly versatile and widely utilized in various applications. They are particularly popular in the mineral exploration industry, where they excel in drilling through medium to very hard formations. When...
Send Inquiry
Chat Now

Description

Technical Parameters

Product Description

I want to emphasize that the impregnated diamond core bits are incredibly versatile and widely utilized in various applications. They are particularly popular in the mineral exploration industry, where they excel in drilling through medium to very hard formations. When encountering tight or abrasive formations with low rates of penetration (ROP) and pressure, the serrated bit exhibits exceptional performance by ensuring high drilling efficiency. It is especially effective when tackling coal seams, as it enhances water flow and improves drilling footage. By opting for toothed bits, one can further optimize the drilling process and attain even better results.

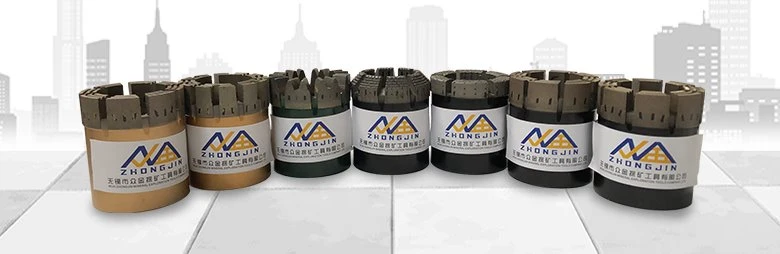

NQ Impregnated Diamond Core Bit

We offer NQ diamond core bits with a diameter of 75.5mm and an inner diameter of 47.6mm.
F16 is the ideal choice for drilling in challenging formations such as hard granite, erythema granite, and quartz granite. This drill bit has a unique advantage of penetrating quickly through tough rock. It is specifically designed to tackle very hard formations with ease and precision, making it a valuable tool for any drilling project. Whether you are working on a construction site or exploring for minerals, F16 is the go-to drill bit for hard rock drilling. Its superior performance and durability make it a must-have for those who demand the best from their drilling equipment.
The F10 design is ideal for various types of rock formations, such as broken rock, soft rock, limestone, sandstone, gravel, and other hard rock formations. It is specifically designed for efficient penetration and durability, ensuring a long service life. This crown shape offers numerous advantages, including fast drilling speed, exceptional wear resistance, and overall performance. Its unique features make it a reliable choice for demanding drilling operations in different geological conditions.


Basic Info

Original: Wuxi, China

Certification: ISO9001

Price: Negotiable

Model No: NQ, NQ2, NQTT

Usage: Wireline core barrel parts

Standard: DCDMA

Payment Term: TT, LC

Delivery Date: Negotiable

Packing: Export standard

MOQ: 1 PCS

NQ Impregnated Diamond Core Bits


Size of Diamond Core Bits and Reaming Shells

Model

Outside Diameter of Core Bit

Inside Diameter of Core Bit

Outside Diameter of Reaming shell

Inches

mm

Inches

mm

Inches

mm

BTW

2.345

59.56

1.667

42.1

2.36

59.95

NTW

2.965

75.31

2.218

56.1

2.98

75.7

HTW

3.762

95.57

2.809

71.1

3.783

96.09

AQ

1.875

47.63

1.062

26.97

1.89

48.01

BQ

2.345

59.56

1.433

36.4

2.36

59.95

BQ3

2.345

59.56

1.32

33.53

2.36

59.95

NQ

2.965

75.31

1.875

47.63

2.98

75.7

NQ3

2.965

75.31

1.775

45.08

2.98

75.7

HQ

3.762

95.57

2.5

63.5

3.783

96.09

HQ3

3.762

95.57

2.406

61.11

3.783

96.09

PQ

4.805

122.05

3.345

84.96

4.828

122.65

PQ3

4.805

122.05

3.27

83.06

4.828

122.65

T2-56

2.205

56

1.642

41.7

2.224

56.5

T2-76

2.992

76

2.429

61.7

3.019

76.5

T2-86

3.385

86

2.823

71.7

3.406

86.5

T2-101

3.976

101

3.295

83.7

3.996

101.5

T6-101

3.976

101

3.11

79

3.996

101.5

T6-131

5.157

131

4.252

108

5.157

131.5


Select Reference Table of Diamond Core Bits

Specificxations of Diamond Core Bits


Diamond Core Bits Crown Shapes

Diamond Core Bits Crown Shapes
